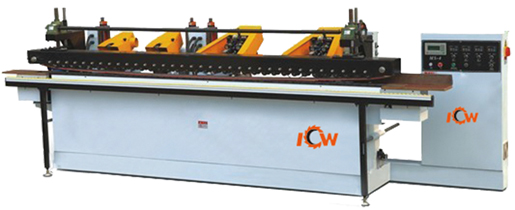

| TECHNICAL SPECIFICATION | MX-4(S2W2) |
| Max. Conveyor Width | 1500mm |
| Min. Conveyor Width | 50mm |
| Max. Conveyor Hight | 80mm |
| Min. Conveyor | 5mm |
| Feeding Speed | 3-32m/min |
| Feeding Motor power | 1.5kw |
| Sanding head motor power | 2.2kw*2Pcs |
| Main spindle size(Dia.X length)total power | Φ25.4X100mm |
| Sand head speed | 400-6000r/min |
| Tilting of sanding head | adjustable |
| Grinding wheel"s Max. size | 200mm |
| Motor power of Sanding Unit | 1.5kw*2Pcs |
| Sand frame with automatic pendulum sand frame Max. sanding width |
80mm |
| Caliber of Dust Collector | 100mm |
| Working air pressure | 0.2--0.6Mpa |
| Motor request | 380v/50hz/3Phase |
| Total power | 8.9kw |
| Dimension | 3500*1700*1550mm |
