| TECHNICAL SPECIFICATION | SFR-R1300 |
| Max Working Width | 1300mm |
| Min.Working Length | 350mm |
| Working Thickness | 3~100mm |
| Total Motor Power | 72.15KW |
| Feeding Speed | 5~30m/min |
| Abrasive Belt Size | 1320*2620mm |
| Working Air Pressure | 0.6MPa |
| Air Consumption | 12 m3/h |
| Volume of Dust Collection Device | 11190m3/h |
| Overall Dimensions | 2130x3340x2520mm |
| Net Weight | 7500kg |

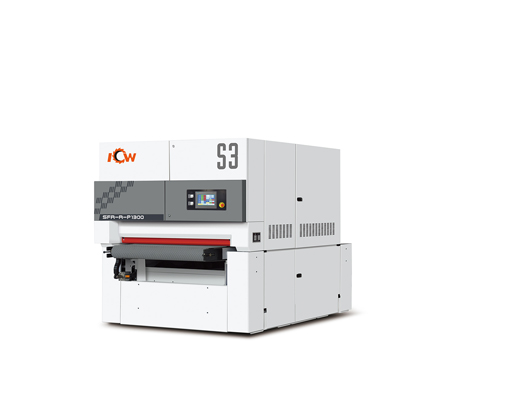

Your first choice for automatic sanding line
1.With SIEMENS automation CNC control systems, Multi-touch screen, simplifying the operation of the machine, as easy as operating a smart phone, which integrates machine tools into your overall production and communication processes. 2.This system with high precision magnetic grating positioning that can display accuracy of up to 10µm, is not sensitive to harsh environmental conditions, such as water, oil, dust and vibration. Therefore, a highly accurate position detection and machine control are assured by this system. There is no elastic deformation in high precision ball screw drive system. So its repeated positioning accuracy can be up to 10µm. 3.It can not only improve the contact area of the roller wheel and the plate with high strength machine and roller system of super diameter, but also make the flatness of the sand upgraded to 2.5 times to ensure highest lasting precision and surface finish.
