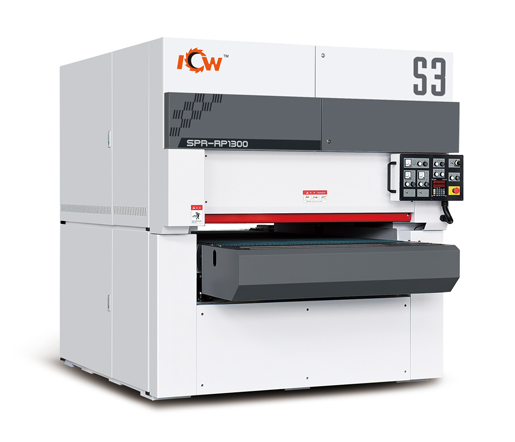

Best new type, heavy and high speed planing machine More accurate, more efficient and more robust, it is a new benchmark in the industry.

With high, rigid, thick-walled high bed, high precision and high speed spindle bearing, planer revolving speed increases by 20%. The overall stability of substantial significantly increase than conventional models. Piano-key type structure, can solve the problems of multi block thickness tolerance in the perspective of demand, narrow materials are unable for sanding at the same time, and it will greatly improve the production efficiency. Equipped with precise indicator display instrument, more intuitive accuracy adjustment of 0.01mm.

TECHNICAL SPECIFICATION	SPR-RP1300	SPR-RP1100	SPR-RP700
Max Working Width	1300mm	1100mm	700mm
Min.Working Length	570mm	570mm	570mm
Working Thickness	10~160mm	10~160mm	10～160mm
Total Motor Power	79.12 kW	63.12kW	44.32kW
Feeding Speed	5 ~30m/min	5~30m/min	5～30m/min
Abrasive Belt Size	1330×2200mm	1130×2200mm	730×2200mm
Working Air Pressure	0.6MPa	0.6MPa	0.6MPa
Air Consumption	17m3/h	17m3/h	12m3/h
Volume of Dust Collection Device	15260 m3/h	15260m3/h	6104m3/h
Overall Dimensions	2036×3110× 2245mm	1836×3110×2245mm	1436×3110×2245mm
Net Weight	6300KG	5570KG	5270KG
