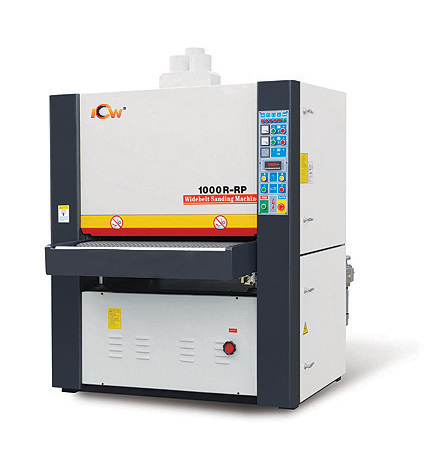

R-RP1000
Wide Belt Sander
Description
Specification
| TECHNICAL SPECIFICATION |
R-RP1300 |
R-RP1000 |
| Max Working Width |
1300mm |
1000mm |
| Min.Working Length |
580mm |
580mm |
| Working Thickness |
3~110mm |
3~110mm |
| Total Motor Power |
62.92 kw |
40.92 kw |
| Feeding Speed |
5~30m/min |
5~30m/min |
| Abrasive Belt Size |
1330×2200mm |
1030×2200mm |
| Working Air Pressure |
0.6MPa |
0.6MPa |
| Air Consumption |
17m3/h |
17m3/h |
| Volume of Dust Collection Device |
6960m3/h |
6960m3/h |
| Overall Dimensions |
2040×2650× 2160mm |
1740×2650× 2160mm |
| Net Weight |
4000KG |
3600KG |
Details
