R-R-RP630

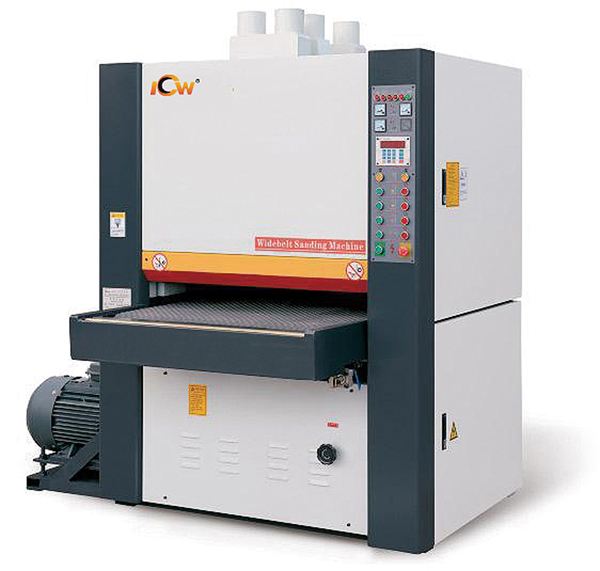

Wide Belt Sanding Machine
Description
The wide Belt sanding machine is a kind of material and object that is not smooth and uneven in thickness and does not meet the process requirements. It can be smoothed and smoothed by means of physical removal such as emery cloth, grinding wheel, sandpaper, scouring pad and non-woven polishing wheel. , uniform thickness, technology to achieve a standard method, applied to a variety of veneer production, standard structure parts production, toy crafts industry, decoration and furniture industry, floor wall plate building materials industry and so on. The wide Belt sanding machine is an automatic feeding double-side sanding machine. It is an ideal machine for small and medium-sized wood-based panel companies to produce blockboard, accumulate material, multi-layer plywood, particle board, and medium-density fiberboard thickness grit, with high power, The characteristics of high efficiency.
Specification
Model
|
630R-RP
|
630R-R
|
Operation Width
|
630mm
|
630mm
|
Min. Operation Lenth
|
350mm
|
350mm
|
Material Thickness
|
2.5mm-110mm
|
2.5mm-110mm
|
Sand-Belt Speed
|
18m/s 18m/s
|
18m/s 18m/s
|
Conveyor Speed
|
5-20m/min
|
5-20m/min
|
Motor Power
|
20.37kw
|
20.37kw
|
Sand-Belt Size
|
650mm*1900mm
|
650mm*1900mm
|
Working Pressure
|
0.6mpa
|
0.6mpa
|
Dust-Absorption Cap
|
6500m3/h
|
6500m3/h
|
Volume Of Compressec
|
13m3/h
|
13m3/h
|
Weight
|
1500kg
|
1500kg
|
Machine Size
|
1780x1140x2000mm
|
1780x1140x2000mm
|
Details
