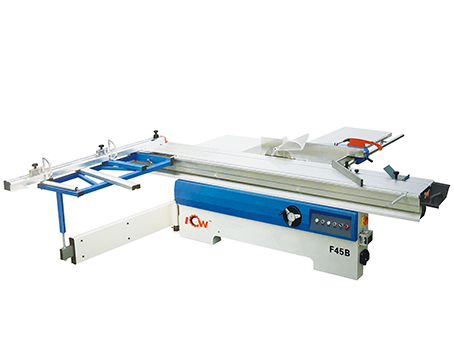

Apply to processing all kinds of density boards,shaving boards,wood-based panels,ABS panels,PVC Panels,Organic Glass plates and solid wood and others with wood structure and similar hardness. 1.Movable table guide track is plating chromium steel bars structure,exact and durable. 2.Made of high-strength extruded aluminum alloy,movable table is high in strength and will not bend. 3.With oxidation treatment ,movable table surface is beautiful and hard wearing. 4.F45A Electronic Lift,Electronic Tilt,Without Type-A Protection Hood 5.F45B Electronic Lift,Manual Tilt.With Simple Protection Hood 6.F45C Manual Lift,Manual Tilt,Without Type-A protection Hood
| TECHNICAL SPECIFICATION | F45A | F45B | F45C |
| Dimension of Sliding Table | 3200*405mm | 3200*405mm | 3200*375mm |
| Gross Cut Capacity | 3200mm | 3200mm | 3200mm |
| Width of cut between saw blade and rip fence | 1300mm | 1300mm | 1250mm |
| Saw blade Diameter | 300mm(φ250-315） | 300mm(φ250-315） | 300mm(φ250-315） |
| Height of cut φ300mm | 80mm | 80mm | 80mm |
| Diameter of guide shaft spindle | φ40mm(optional φ50mm) | φ40mm(optional φ50mm) | φ40mm(optional φ50mm) |
| Height of cut with saw blade 300mmat 45° | 55mm | 55mm | 55mm |
| Speed of main saw spindle | 4000/6000rpm | 4000/6000rpm | 4000/6000rpm |
| Spindle Diameter | 30mm | 30mm | 30mm |
| Tilting Saw Blade | 0-45° | 0-45° | 0-45° |
| Main Motor | 4/5.5kw | 4/5.5kw | 4/5.5kw |
| Scoring Saw Blade Diameter | 120mm | 120mm | 120mm |
| Speed of Scoring Saw Blade | 8000r/min | 8000r/min | 8000r/min |
| Scoring Spindle Diameter | 20mm | 20mm | 20mm |
| Scoring Motor | 0.75kw | 0.75kw | 0.75kw |
| Overall Dimensions | 3200*900*960mm | 3200*900*960mm | 3000*900*960mm |
