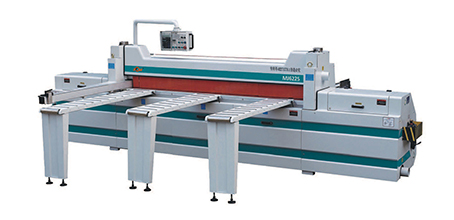

1.Accurate Cutting Auto Return System Dual Guide Rails Design. 2.Auto-return: Saw blade automatically returned to preset position after cutting different lengths of the boards. 3.Dual guide rails: One sided dual guide rails construction. improving the cutting precision. 4.Dual feeding speeds: Meeting different sizing requirements.
| SPECIFICATION | MJ6225 | MJ6232 |
| Max.Working Thickness | 65mm | 65mm |
| Cutting Speed | 13.2/26.4m/min | 13.2/26.4m/min |
| Main Blade Size | Ф305xФ80mm | Ф305xФ80mm |
| Scoring saw Blade Size | Ф160xФ55mm | Ф160xФ55mm |
| Main Saw Shaft Diameter | Ф80mm | Ф80mm |
| Saw Shaft Diameter Tank | Ф55mm | Ф55mm |
| Main Saw Spindle Speed | 4700r/min | 4700r/min |
| Scoring Spindle Speed | 6100r/min | 6100r/min |
| Main Saw Motor Power | 7.5kw | 7.5kw |
| Scoring Motor Power | 1.5kw | 1.5kw |
| Total Power | 9kw | 9kw |
| Dust Outlet | Ф100x3 | Ф100x3 |
| Working Pressure | 0.6MPa | 0.6MPa |
| Net Weight | 1960kg | 2170kg |
| Overall Dimensions | 5150x1140x2140mm | 5850x1140x2140mm |
