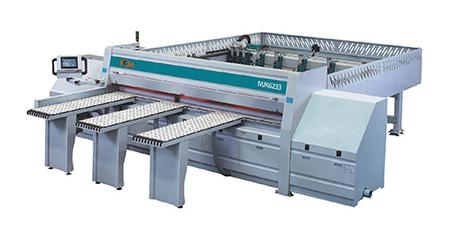

1.NC Precision Sawing Touch Screen Intelligent Operation Efficient Instrument Of Panel Sizing 2.The machine adopted PLC control with industrial touch—LCD, easy operation without keyboard and mouse. The intelligent instruction system leading operator step by step, allowed operator being easily familiar with its practice in a short time. 3.Integrated control platform wholly control sizing specification or speed. Man—machine interactive feedback system truly reflected the whole situation in time during processing or intellectually deal with the situation.
CHARACTERISTICS 1.High performance touch-screen clear, reliable and easy to operate. 2.Panasonic servo motor and control device, functional and reliable. 3.Swiss made worm gear reducer. high precision. 4.Working table with flcatmy steel balls, easy for feeding. 5.Swiss made gear and rack feeding structure, high precision. 6.High performance pneumatic feeding clamp.SPECIFICATION | MJK6233 |
Max.Working Length | 3300mm |
Max.Working hleight | 100mm |
Main Saw Size | Ф400mm |
The Main saw trunnion | Ф80mm |
The Main saw blade rotating speed | 3850r/min |
Scoring saw blade diameter | Ф180mm |
Scoring saw spindle dia | Ф55mm |
Scoring saw blades rotating speed | 6700r/min |
Sawing unit forward velocity | 0-50m/min |
Sawing unit astern speed | 80-100m/min |
Automatic feeding speed | 30m/min |
Table from ground level | 920mm |
Tota一dower | 22.12kw |
Dusi exit | Ф100x4 |
Air Consumption | 0.6MPa |
Net Weight | 4000kg |
Overall Dimensions | 6630x6015x1890mm |
