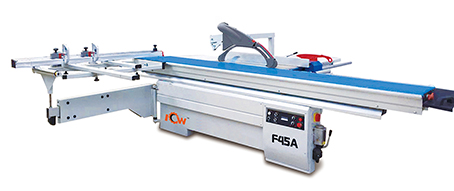

Sliding Table Saw sale instructions
Price: $320
Ordering instructions: Commodity prices will fluctuate at different times, depending on the situation. Different product models, different prices.
Belongs to the push table width 90 degrees saw blade vertical up and down can only cut right angle, cutting function solid wood plywood acrylic sheet, etc., used to produce panel furniture, 45 degree machine: saw blade can be inclined at 45 degrees, right angle universal type, used for solid wood furniture Panel furniture, etc. According to the needs of the pro-self-selection of the model, the body is welded with high-strength iron plate, and the push-pushing national standard aluminum ingot is durable and difficult to deform.
Main safety issues for Sliding Table Saw:
Please check the detailed instructions before operating this machine:
It is suitable for processing wood structures such as various density boards, particle boards, wood-based boards, ABS boards, PVC boards, organic glass boards and solid wood, and boards with similar hardness;
The surface is spray-coated, not only bright and smooth, but also long-lasting. After a period of time, the paint is treated with friction, and the paint will fall down one by one, which is not beautiful.
Due to the large number of models, the specific price configuration is subject to the actual model!
TECHNICAL SPECIFICATION | F45A | F45B | F45C |
Dimension of Sliding Table | 3200*405mm | 3200*405mm | 3200*375mm |
Gross Cut Capacity | 3200mm | 3200mm | 3200mm |
Width of cut between saw blade and rip fence | 1300mm | 1300mm | 1250mm |
Saw blade Diameter | 300mm(φ250-315) | 300mm(φ250-315) | 300mm(φ250-315) |
Height of cut φ300mm | 80mm | 80mm | 80mm |
Diameter of guide shaft spindle | φ40mm(optional φ50mm) | φ40mm(optional φ50mm) | φ40mm(optional φ50mm) |
Height of cut with saw blade 300mmat 45° | 55mm | 55mm | 55mm |
Speed of main saw spindle | 4000/6000rpm | 4000/6000rpm | 4000/6000rpm |
Spindle Diameter | 30mm | 30mm | 30mm |
Tilting Saw Blade | 0-45° | 0-45° | 0-45° |
Main Motor | 4/5.5kw | 4/5.5kw | 4/5.5kw |
Scoring Saw Blade Diameter | 120mm | 120mm | 120mm |
Speed of Scoring Saw Blade | 8000r/min | 8000r/min | 8000r/min |
Scoring Spindle Diameter | 20mm | 20mm | 20mm |
Scoring Motor | 0.75kw | 0.75kw | 0.75kw |
Overall Dimensions | 3200*900*960mm | 3200*900*960mm | 3000*900*960mm |
