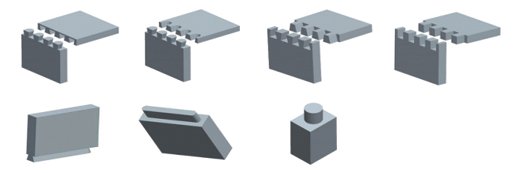

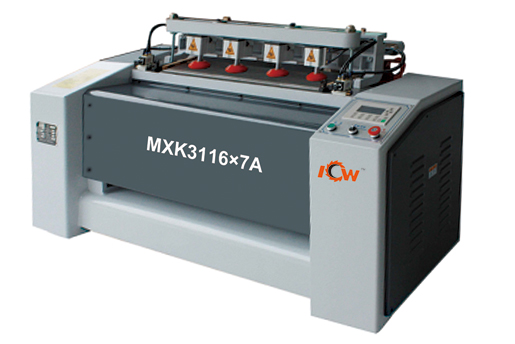

Siemens CPU and Display Operation Screen. Digital Servo Drive System ，Precision Ball Screw Driving. High-speed motorized spindle(24000r/min), Frequency converter control. Double Track Suspension Structure(Have China patent), Clear and Precise Transmission, Not Accumulate Ash, Increase of Service Life，Structural Science. Processing a variety of Tenon Type: Dovetail/Straight tenon /Round tenon ,etc.
| TECHNICAL PARAMETERS | MXK3116×10A | MXK3116×7A |
| Processing Width | 25~1000mm | 25~750mm |
| Processing Thickness | 5~50mm | 5~50mm |
| 1、2、3、4Type：5~30mm | 1、2、3、4Type：5~30mm | |
| 5、6、7Type：5~50mm | 5、6、7Type：5~50mm | |
| Tenoning Spacing | Adjustable | Adjustable |
| Speed of Main Shaft | 24000r/min | 24000r/min |
| High-speed motorized spindle | High-speed motorized spindle | |
| Frequency converter control | Frequency converter control | |
| Cutting cycle | 10~20S | 10~20S |
| Install Power | 6KW | 6KW |
| Voltage | Three-phase 380V and Zero line,50~60Hz | Three-phase 380V and Zero line,50~60Hz |
| Machine size | 2100×950×1200(mm) | 1750×900×1100(mm) |
| Net Weight | 1000KG | 800KG |
