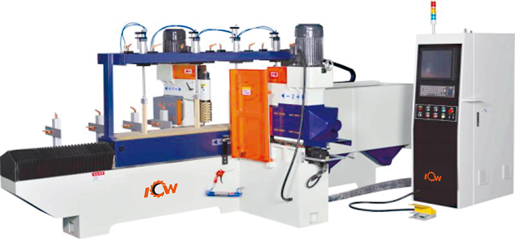

SDX-SX2-1500 1.5M Double Head Computer Double Milling Machine

Description

Specification

SPECIFICATION	SDX-SX2-1500
Processing Height	200MM
Processing Length	1500MM
Processing Width	15mm-320MM
Arbor Diameter	40MM
Arbor Rotation Speed	8600R.P.M
Main Spindle Motor	7.5KW*2
Max.Working Speed	0-15M/MIN
Max.retroversion Speed	40M/MIN
X Axis Servo	2.0KW
Y Axis Servo	1.0KW
Z Axis Servo	1.0KW
Pressure Utensil	4pcs
Working Pressure	6KG
Dust Suction	Dia.:150MM*8pcs
Electric Box Size	10505501800MM
Overall Dimension	530027002000MM

Details
