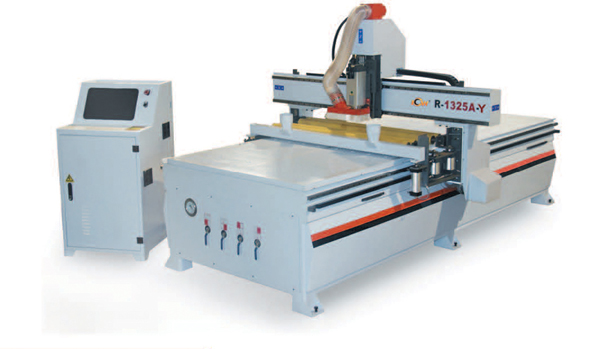

| 机械指标 | Specification | R-1325A-Y |
| 行程 | X Axis | 1500mm |
| Y Axis | 3000mm | |
| Z Axis | 200mm | |
| 机床精度 | Machine Accuracy | ±0.1mm |
| Repeat Positioning Accuracy | ±0.03mm | |
| 机床结构 | Table | Vacumm |
| X、Y、Z | xy轴：齿条；z轴：丝杆 | |
| 速度 | The Maximum Running Speed | 25m/min |
| The Maximum Cutting Speed | 20m/min | |
| 主轴电机 | Spindle Power | 4个 4.5kw(冷风主轴) |
| Spindle Speed | 18000r/min | |
| 工作电压 | Working Voltage | AC380V/50HZ |
| 操作系统 | Control System | WEIHONG |
| 运转指令 | Operation Instruction | G-code, *.NC |
