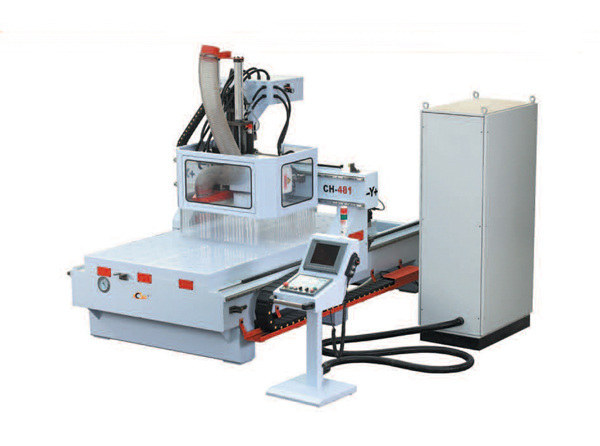

| 机械指标 | Specification | CH-481 |
| 行程 | X Axis | 1300mm |
| Y Axis | 2500mm | |
| Z Axis | 200mm | |
| 机床精度 | Machine Accuracy | ±0.05mm |
| Repeat Positioning Accuracy | ±0.01mm | |
| 机床结构 | Table | Vacumm |
| X、Y、Z | xy轴：齿条；z轴：丝杆 | |
| 速度 | The Maximum Running Speed | 60m/min |
| The Maximum Cutting Speed | 30m/min | |
| 主轴电机 | Spindle Power | HSD 9kw |
| Spindle Speed | 24000r/min | |
| 工作电压 | Working Voltage | AC380V/50HZ |
| 操作系统 | Control System | TAIWAN XINDAI |
| 运转指令 | Operation Instruction | G-code, *.NC |
