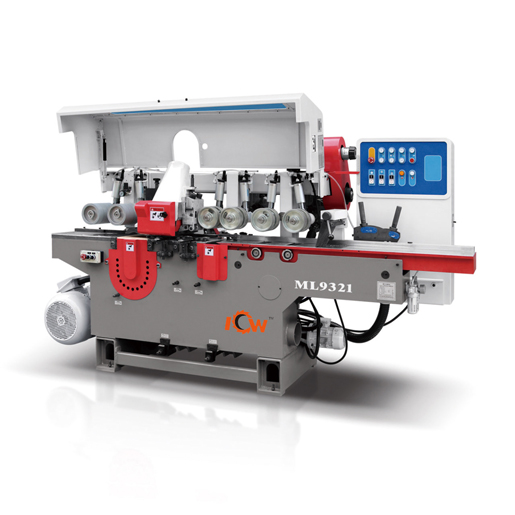

| SPECIFICATION AND MODEL | ICW-ML9321 | ICW-ML9321A |
| Max. working width(mm) | 200mm | 200mm |
| Max. working thickness(mm) | 75mm | 75mm |
| Feeding speed(m/min) | 4-18m/min | 4-18m/min |
| Top spindle diameter(mm) | 40mm | 40mm |
| Top spindle rotation rate(r/min) | 6000r/min | 6000r/min |
| Top spindle movement(mm) | 20mm | 20mm |
| Top spindle motor power(kw) | 5.5kw | 5.5kw |
| Bottom spindle diameter(mm) | 40mm | 40mm |
| Bottom spindle rotation rate(m/min) | 6000r/min | 6000r/min |
| Bottom spindle motor power(kw) | 4kw | 4kw |
| Cutting spindle diameter(mm) | 50mm | 40mm |
| Cutting spindle rotation rate(m/min) | 4000r/min | 5000r/min |
| Max. saw blade diameter(mm) | 300mm | 300mm |
| Spindle power(kw) | 22kw | 22kw |
| Spindle elevating motor(kw) | 0.37kw | 0.37kw |
| Feeding motor power(kw) | 2.2kw | 2.2kw |
| Elevating motor power(kw) | 0.37kw | 0.37kw |
| Total power(kw) | 34.44kw | 34.44kw |
| Air pressure(Mpa) | 0.6Mpa | 0.6Mpa |
| Dimension(mm) | 3070×1230×1540mm | 3070×1230×1540mm |
