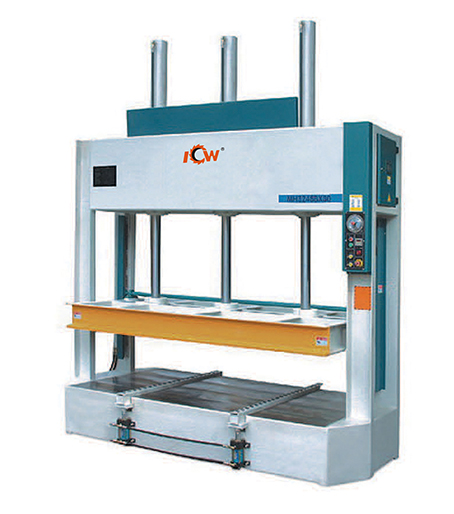

| MODEL | MH3248B×80 |
| Press Platen Dimensions | 1300×2500mm |
| Max.Total Thrust | 80t(2.5kg/cm²) |
| Pressure Of Hydraulic System | 200kg/cm² |
| Max.Platen Opening | 1300mm |
| Oil Cylinder | φ50mm×4pcs |
| Hydraulic Motor Power | 5.5kw |
| Net weight | 3850kg |
| Overall Dimensions | 3050×1300×3500mm |
