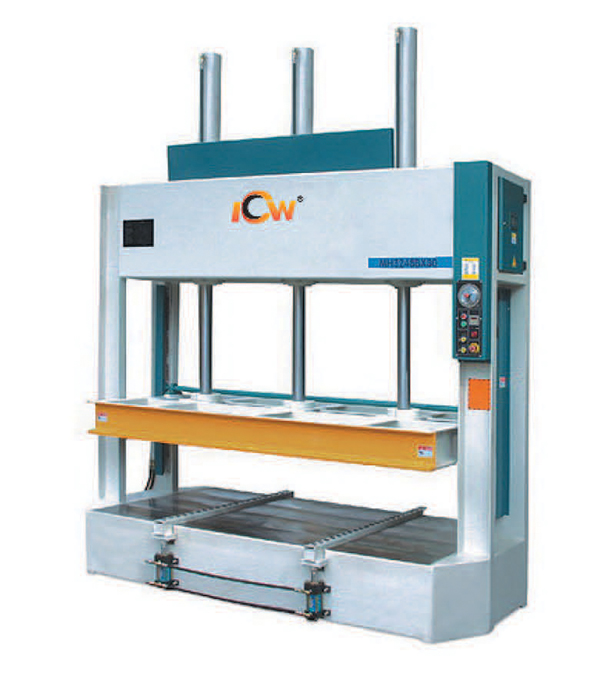

| MODEL | MH3248B×50 |
| Press Platen Dimensions | 1250×2500mm |
| Max.Total Thrust | 50t(1.6kg/cm2) |
| Pressure Of Hydraulic System | 210kg/cm2 |
| Max.Platen Opening | 1000mm、1300mm |
| Oil Cylinder | "φ110mm×2pcs φ50mm×4pcs" |
| Hydraulic Motor Power | 4kw |
| Net Weight | 2650kg |
| Overall Dimensions | 2940×1250×3000mm |
