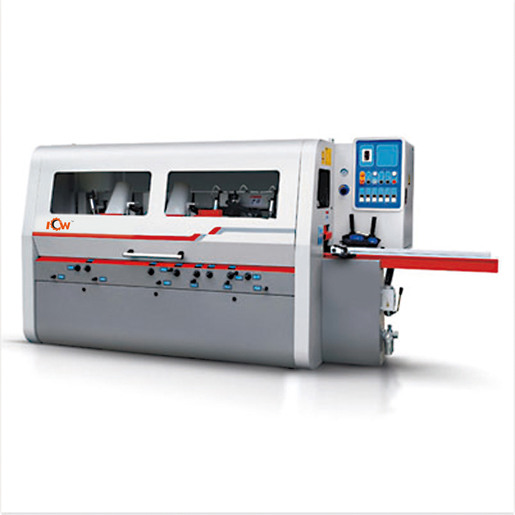

Professional Solution processing Soft wood strip, Medium cutting capacity strip, MDF strip, HDF strip, Glued laminated timber and Square boards. Accessories:
Accessories:
| MODEL | ICW-M518 | ICW-M418 | |
| Specification | Working width | 25-180 | 25-180 |
| Working thickness | 8-130 | 8-130 | |
| Working table length | 1500 | 1500 | |
| Feeding speed | 6-36 | 6-36 | |
| Mian spindle diameter (mm) | Φ 40 | Φ 40 | |
| Main spindle revolution(r/min) | 6500 | 6500 | |
| Air pressure (Mpa) | 0.6 | 0.6 | |
| Motor power(KW) | 1st LowerShaft | 4kw/5.5HP | 4kw/5.5HP |
| Right vertical spindle | 4kw/5.5HP | 4kw/5.5HP | |
| Left vertical spindle | 4kw/5.5HP | 4kw/5.5HP | |
| 1st UpperShaft | 5.5kw/7.5HP | 5.5kw/7.5HP | |
| 2ndUpperShaft | |||
| 2ndLower Shaft | 4kw/5.5HP | ||
| Feeding beam lifting | 0.55kw/0.75HP | 0.55kw/0.75HP | |
| Feeding motor | 3kw/4HP | 3kw/4HP | |
| Total power | 25.05kw/34HP | 21.05kw/28.6HP | |
| Cutter diameter | 1st Lower Shaft | Φ 125 | Φ 125 |
| Right Vertical spindle | Φ 125-160 | Φ 125-160 | |
| Left vertical spindle | Φ 125-160 | Φ 125-160 | |
| 1st Upper Shaft | Φ 125-160 | Φ 125-160 | |
| 2nd Lower Shaft | Φ 125-180 | ||
| Remark | Feeding wheel diameter (mm) | Φ 140 | Φ 140 |
| Dust outlet diameter (mm) | Φ 140 | Φ 140 |
