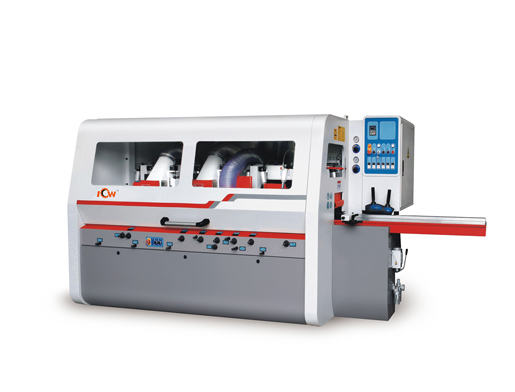

Your first choice for automatic sanding line This machine is combined the function of traditional 4 sides moulders and cutting machine,which realizes the multi-use machine.It can save more time and improve the production capacity. And it can professionally solve the high efficiency and large quantity processing the solid wood,is the special model for transection of wood ,reducing workers.
| MODEL | ICW-M621HS | |
| Specification | Working width | 25-210 |
| Working thickness | 8-140 | |
| Working table length | 1970 | |
| Feeding speed | 6-36 | |
| Main spindle diameter (mm) | Φ40 | |
| Main spindle revolution(r/min) | 6500 | |
| Air pressure (Mpa) | 0.6 | |
| Motor power(KW) | 1st Lower Shaft | 5.5kw/7.5HP |
| Right vertical spindle | 5.5kw/7.5HP | |
| Left vertical spindle | 5.5kw/7.5HP | |
| 1st Upper Shaft | 5.5kw/7.5HP | |
| 2nd Upper Shaft | 5.5kw/7.5HP | |
| 2nd Lower Shaft | 5.5kw/7.5HP | |
| Feeding beam lifting | 0.55kw/0.75HP | |
| Feeding motor | 4kw/5.5HP | |
| Total power | 39.55kw/54.3HP | |
| Cutter diameter | 1st Lower Shaft | Φ 125 |
| Right Vertical spindle | Φ 125-Φ 180 | |
| Left vertical spindle | Φ 125-Φ 180 | |
| 1st Upper Shaft | Φ 125-Φ 180 | |
| 2nd Upper Shaft | Φ 125-Φ 180 | |
| 2nd Lower Shaft | Φ 125-Φ 200 | |
| Remark | Feeding wheel diameter (mm) | Φ140 |
| Dust outlet diameter(mm) | Φ140 |
