| Infeed Length | 150-900mm |
| Shaping Thickness | 20-150mm |
| Max.Working Width For Shaper Working Table | 450mm |
| Pressing Thickness | 20-80mm |
| Pressing Width | 30-150mm |
| Shaper Spindle Diameter | Ф50mm |
| Shaper Spindle Speed | 6750rpm |
| Hogger Spinde Diameter | Ф30mm |
| Hogger Spinde Speed | 2840rpm |
| Max.Pressing Length | 2500mm |
| Max.Thrust Force | 7500kg |
| Shaper Spindle Power | 11kw x2 |
| Hogger Power | 4kw x2 |
| Scoring Saw Power | 0.75kw x3 |
| Hydraulic System Power For Press | 4kw |
| Saw Blade Power For Press | 4kw |
| Total Power For Belt Conveyor | 0.75kw |
| Total Power For Roller Conveyor | 0.75kw |
| Total Power | 41.75kw |
| Working Pressure | 6-8bar |
| Wind Measure Of Dust Collector | 9000m3/h |

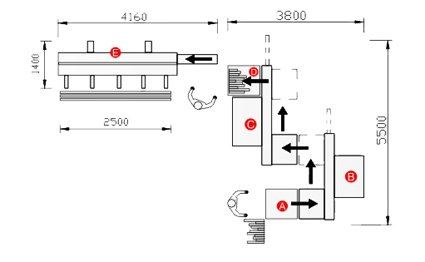

| Fixing Dimensions | 8000x6000mm |
