| Infeed Length | 150-900mm |
| Shaping Thickness | 20-150mm |
| Max.Working Width For Shaper Working Table | 590mm |
| Pressing Thickness | 20-80mm |
| Pressing Width | 30-150mm |
| Shaper Spindle Diameter | Ф50mm |
| Shaper Spindle Speed | 6750rpm |
| Hogger Spinde Diameter | Ф30mm |
| Hogger Spinde Speed | 2840rpm |
| Max.Pressinq Length | 6040mm |
| Max.Thrust Force | 7500kg |
| Shaper Spindle Power | 15kw x2 |
| Hugger Power | 5.5kw x2 |
| Total Conveyor Power For Shaper | 0.75kw x2 |
| Hydraulic System Power For Sharer | 2.2kw x2 |
| Hydraulic System Power For Press | 4kw |
| Saw Blade Power Fnr Press | 4kw |
| Total Conveyor Power For Press | 1.5kw |
| Total Power For Belt Conveyor | 1.5kw |
| Total Power For Roller Conveyor | 4.5kw |
| Total Power For Chain Conveyor | 2.95kw |
| Total Motor Power | 65.35kw |
| Working Air Pressure | 6-8bar |
| Wind Measure Of Dust Collector | 9000m3/h |

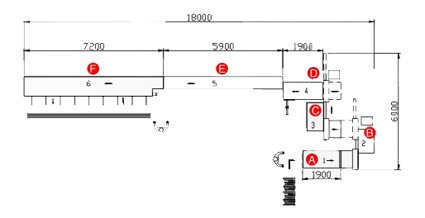

| Fixing Dimensions | 18000x6000mm |
