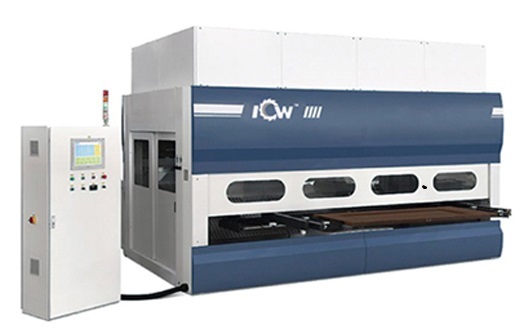

1.It is suitable to spray paint on door. The top and bottom surface and the 4 sides can be painted in 1 time. This machine can be used with other spraying equipment(spraying booth,spraying room,water spraying booth etc.) 2.Adopt Pneumatic rotary double station to feed workpiece Special turning over system makes the door 6 surfaces spraying finish one time. These advantages save the spraying procedure and effectively improve the working efficiency and ensure the spraying quality. 3.Just need 2 worker to finish the whole spraying operation. Output can be 25 door/hour. Adopt imported numerical control system, equipped with self-developed soft. Humanized man-machine conversation window make it easy to study. By numerical control system to precisely control the movement of spray gun, to realize Artificial imitation spraying technology. This ensure the painted surface even and all corners & edges well painted. 4.Simple operation No need depend on the painting technician. Shorten the production period Reduce paint cost and labor cost
MODEL | SPD2500D |
Overall dimension | 4500*385*2500mm |
Weight | 2200kg |
Max.spraying length | 2500mm |
Max.spraying width | 1300mm |
Max.spraying thickness | 150mm |
Gun movement speed | 0~1800mm/s |
Total power | 3.55kw |
Air pressure | 0.6-0.8Mpa |
