<p>
Application Scope:
It is suitable for processing panel furniture,home decoration,decorative woodworking,cutting &milling doors.
</p>
Features:
1.This machine is humanized designed ,easy to operate,greater safety than saw machine.
2.It is very simple to use for computer control,zero error,zero fault,workers can operate the machine after 3-5 hours training.
3.It use milling cutter to saw materials,can modulate arbitrary direction,which a large quantity of saving board,utilization rate can reach 2.7-2.8m³.

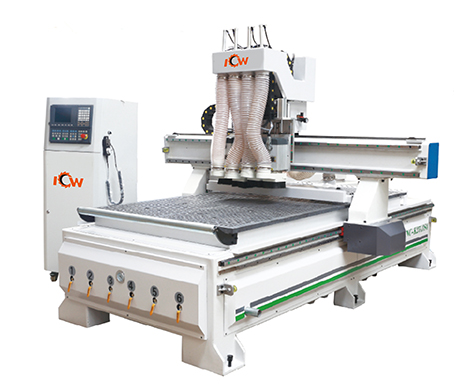

| MODEL | CNC-K2513S4 |
| Oversize dimension | 3200*2500*2150mm |
| Machining area | 1300*2500mm |
| Z axis height | <50mm |
| Running speed | 40r/min |
| Tool blade diameter | ∮12.7 |
| Transmission mode | X/Y Helical gear of reducer,Z screw |
| Spindle power | 6.5kw ,4.5kw,4.5kw,4.5kw |
| Other power(without spindle) | 1.5kw (without vacuum pump,dust collector) |
| Working voltage | 380v 50hz |
| installation | Vacuum installation |
| Spindle speed | 0-18000r/in |
| Control system | New generation /Weihong (optional) |
